Name: Reinforced Composite Bentonite Waterproof Blanket with High Tensile Strength and Long Service Life for Geosynthetic Clay Liner Applications
Brand: Changsha Jian-Yi New Material Co., Ltd.
SKU: 4000~6000g/m2
Price: 0.83 USD
Availability: InStock

特徴ギャラリー製品の説明見積依頼

特徴

仕様

幅: 4-6m

腫れ指数: ≥24ml/2g

タイプ: Geosyntheticの粘土はさみ金

単重: ≧4000g/㎡

青い粘土: ≥30g/100g

最大荷重時の伸び: ≥10%

抵抗液圧: ≤5.0X1011m/s

ベントナイトの耐久性: ≥20ml/2g

ハイライト:

Reinforced Composite Bentonite Waterproof Blanket

High Tensile Strength Geosynthetic Clay Liner

Long Service Life Bentonite GCL

基本情報

起源の場所: 中国

ブランド名: JianYi

証明: ISO 9001 CE

モデル番号: 4000~6000g/m2

お支払配送条件

受渡し時間: 30日

支払条件: T/T、L/C

供給の能力: 3000T/MONTH

ギャラリー

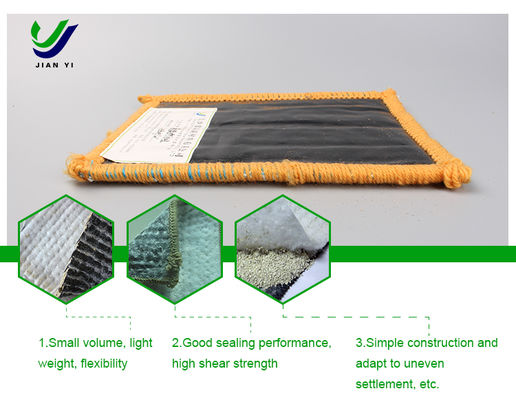

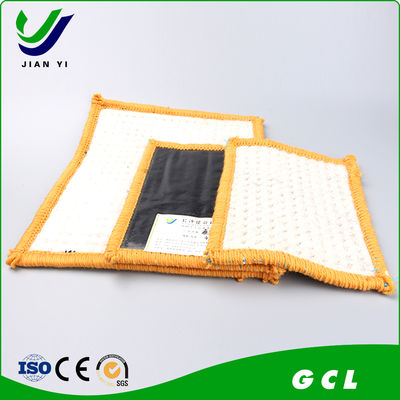

Reinforced Composite Bentonite Waterproof Blanket with High Tensile Strength and Long Service Life for Geosynthetic Clay Liner Applications

製品の説明

Bentonite Waterproof Blanket - Reinforced Composite Impermeable Material

Product Introduction

This reinforced bentonite waterproof blanket represents an advanced upgrade to traditional BWB technology. By integrating a high-strength geogrid between the bentonite layer and geotextile, the product achieves superior tensile strength and tear resistance while maintaining the exceptional water-swelling and impermeable properties of natural bentonite. Engineered for applications demanding enhanced structural integrity and waterproof reliability.

Product Features

High Tensile Strength: Geogrid reinforcement significantly enhances tensile strength and tear resistance, suitable for large-area installations and deformation-prone environments
Reliable Impermeability: Evenly distributed bentonite particles form a continuous impermeable layer that effectively blocks water seepage
Easy Installation: Lightweight and flexible design allows for simple cutting and laying, reducing construction complexity and improving efficiency
Long Service Life: Composite structure resists aging and damage, providing durable waterproof performance exceeding 50 years under normal conditions

Application Fields

Ideal for large-scale water conservancy projects including dams and sluices, highway and railway subgrade anti-seepage systems, landfill leachate collection and treatment facilities, industrial wastewater storage tanks, and coastal reclamation projects. Particularly suited for applications with extensive structural spans and demanding requirements for both anti-seepage performance and structural stability.

Product Installation Guidelines

Base Surface Preparation: Remove debris and sharp objects, level and compact the surface with flatness tolerance within ±5cm
Laying Sequence: Install from lower to upper sections along slopes; horizontal installation proceeds from upstream to downstream
Overlap Specifications: Maintain 20cm longitudinal overlap and 15cm transverse overlap widths
Connection Treatment: Apply bentonite paste to overlap areas for enhanced impermeability; secure with fixing nails at density of 2-3 nails per square meter
Inspection & Backfilling: Conduct comprehensive inspection for wrinkles, damage, and insufficient overlap; backfill with non-corrosive soil in compacted layers

Performance Advantage: The reinforced composite structure combines the proven waterproofing capabilities of bentonite with enhanced mechanical strength, delivering reliable long-term performance in demanding civil engineering applications.
