Weldable HDPE Geomembrane with Ultra-Low Permeability and Excellent UV Resistance for Mine Water Storage

Weldable HDPE Geomembrane with Ultra-Low Permeability and Excellent UV Resistance for Mine Water Storage
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
材料: 高密度ポリエチレン (HDPE)
色: ブラック、グリーン、カスタム
温度範囲: -70°Cから80°C
厚さ: 0.3mm～3.0mm
破断時伸び: 700%
密度: 0.939g/cm3
紫外線耐性: 素晴らしい
幅: 1m~9m
耐薬品性: 素晴らしい
長さ: 30m-100m
突刺強度: 240~960N
応用: ゴミ捨て場 ダム
タイプ: 地膜
ハイライト:

Weldable HDPE Geomembrane

,

Ultra-Low Permeability Geomembrane Liner

,

Excellent UV Resistance HDPE Smooth Geomembrane
基本情報
起源の場所: 中国
ブランド名: JianYi
証明: ISO9001
お支払配送条件
製品の説明

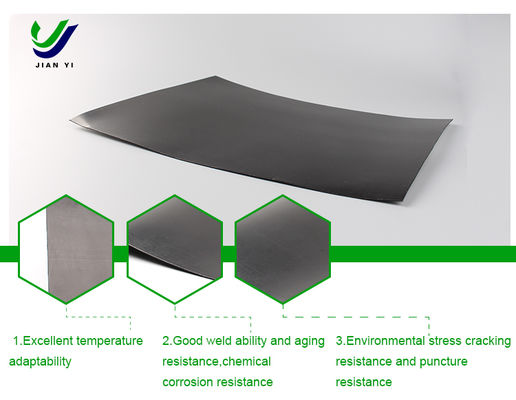

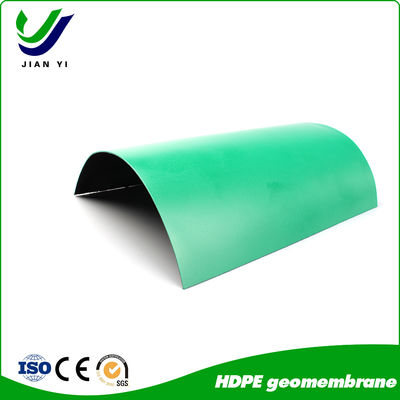

Weldable HDPE Geomembrane for Mine Water Storage
Our Weldable HDPE Geomembrane is a high-performance water storage material engineered specifically for mine water storage applications. Manufactured from high-purity HDPE resin with consistent density and uniform molecular weight distribution through precision extrusion processes, this geomembrane delivers exceptional performance in demanding mining environments.
Key Features and Benefits
  • Superior Weldability: Seamlessly welded using HDPE welding equipment to create large-area water storage structures with exceptional structural integrity and leak-free performance
  • Ultra-Low Permeability: Extremely low permeability coefficient (≤1.0×10⁻¹³ cm/s) minimizes water loss through evaporation and seepage
  • Excellent Mechanical Properties: High tensile strength (≥25MPa) and elongation at break (≥450%) accommodate ground settlement without cracking
  • Outstanding Durability: UV stabilizers and anti-aging agents provide long-term weather resistance and chemical protection against mineral water erosion
Product Specifications
Thickness Range 0.8mm to 2.5mm
Width Range 2m to 8m (customizable)
Tensile Strength ≥25MPa
Elongation at Break ≥450%
Permeability Coefficient ≤1.0×10⁻¹³ cm/s
Application Scenarios
This geomembrane is specifically designed for various mine water storage applications:
  • Mine reservoirs for surface water and groundwater storage
  • Water tanks for domestic and production water supply
  • Irrigation ponds for mining area vegetation
  • Emergency water storage pits for water shortage situations
  • Temporary water storage facilities during mine construction
  • Renovation projects for existing mine water storage facilities

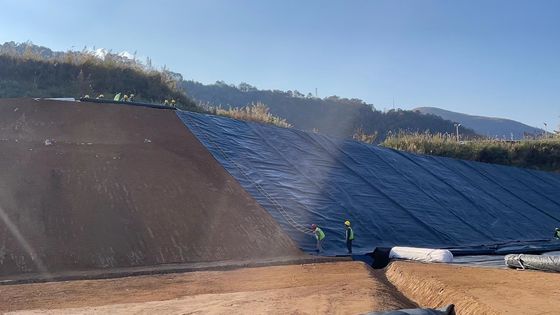

Installation Guidelines
Proper installation is crucial for optimal performance and longevity:
  • Prepare a flat, compacted base surface before installation
  • Use non-woven geotextile as protective underlayment to prevent punctures
  • Install from bottom to top of the facility using HDPE welding equipment
  • Ensure straight, firm welding seams for leak-proof joints
  • Secure top edges with anchor grooves to withstand water pressure
  • Conduct water filling tests (24-48 hours observation) to verify integrity
  • Avoid exceeding design capacity to prevent excessive pressure damage
  • Perform regular inspections and timely repairs of any surface damage
