ホーム /製品/排水 ゲオネット/Three-Dimensional Composite Drainage Net - High-Efficiency Drainage with Excellent Chemical and UV Resistance

Three-Dimensional Composite Drainage Net - High-Efficiency Drainage with Excellent Chemical and UV Resistance

90m2
MOQ
0.96USD~3.44USD per sqm
価格
Three-Dimensional Composite Drainage Net - High-Efficiency Drainage with Excellent Chemical and UV Resistance
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
色: 黒
耐薬品性: 素晴らしい
幅: 2m-6m
紫外線耐性: 素晴らしい
長さ: 50m～100m
抗張力: ≥16kN/m
重さ: ≥200g/m2
アプリケーション: ゴミ捨て場,道路床,鉄道,トンネル,支障壁
ハイライト:

High-Efficiency Drainage Net

,

Chemical Resistant Drainage Geonet

,

UV Resistant Composite Drainage Network
基本情報
起源の場所: 中国
ブランド名: JianYi
証明: ISO 9001 CE
モデル番号: 4mm-8mm
お支払配送条件
受渡し時間: 7～15日
支払条件: L/C、D/P
供給の能力: 600t/month
製品の説明
Three-Dimensional Composite Drainage Net - High-Efficiency Drainage and Filtration Material
Product Introduction

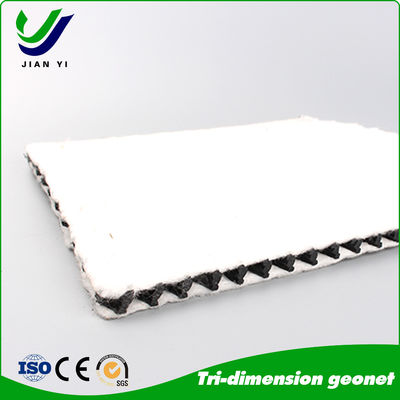

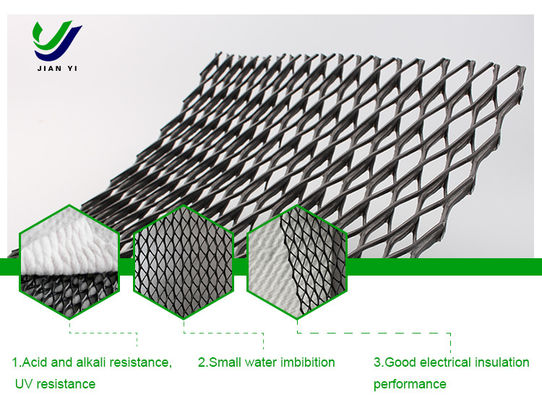

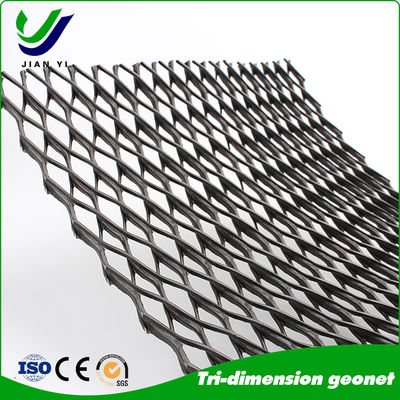

Our Three-Dimensional Composite Drainage Net combines a three-dimensional plastic mesh core with two layers of non-woven geotextile. The mesh core features a high void ratio that creates efficient drainage channels for water, while the geotextile layers provide superior filtration to prevent soil particles from entering and clogging the drainage system. This engineered solution delivers exceptional drainage performance and filtration efficiency, effectively addressing water accumulation issues in various engineering applications.
Product Features
  • High Drainage Efficiency: The three-dimensional mesh core features over 90% void ratio, providing substantial flow capacity with drainage speeds 5-10 times faster than traditional materials.
  • Superior Filtration Performance: Non-woven geotextile with optimized pore size effectively filters soil particles, prevents drainage channel blockage, and ensures long-term stable performance.
  • Exceptional Compressive Strength: The stable three-dimensional structure maintains optimal drainage performance even under high pressure conditions.
  • Corrosion and UV Resistance: Manufactured from high-quality HDPE material, resistant to chemical corrosion and ultraviolet radiation for extended service life.
Application Fields
  • Landfill leachate drainage systems
  • Highway and railway subgrade drainage
  • Slope and embankment drainage
  • Basement exterior wall drainage
  • Sports field and recreational area drainage
  • Soft soil foundation treatment
  • Coastal reclamation and marine projects
  • Other applications requiring efficient drainage solutions
Product Installation Guidelines
  1. Base Surface Preparation: Ensure the base surface is flat, clean, and free of sharp objects. Level uneven areas and compact the surface to prevent damage to the drainage net.
  2. Unfolding and Laying: Position the drainage net with the geotextile layer facing the soil. Lay from lower to upper sections along slopes, and from upstream to downstream for horizontal installation. Maintain 15-20cm overlap between adjacent nets.
  3. Fixing and Connection: Secure the drainage net to the base surface using fixing nails at 1-1.5m intervals. Connect overlap areas with staples or adhesive to ensure tight, leak-proof joints.
  4. Backfilling: After installation, promptly backfill with fine soil or sand. Compact in layers and avoid direct heavy machinery traffic on the drainage net.
タグ:

路面排水 ゲオネット

6.3mm 排水型ゲオネット

地工合成複合排水網
